分步表单 formSteps
版本支持：2.1.1 及以上版本

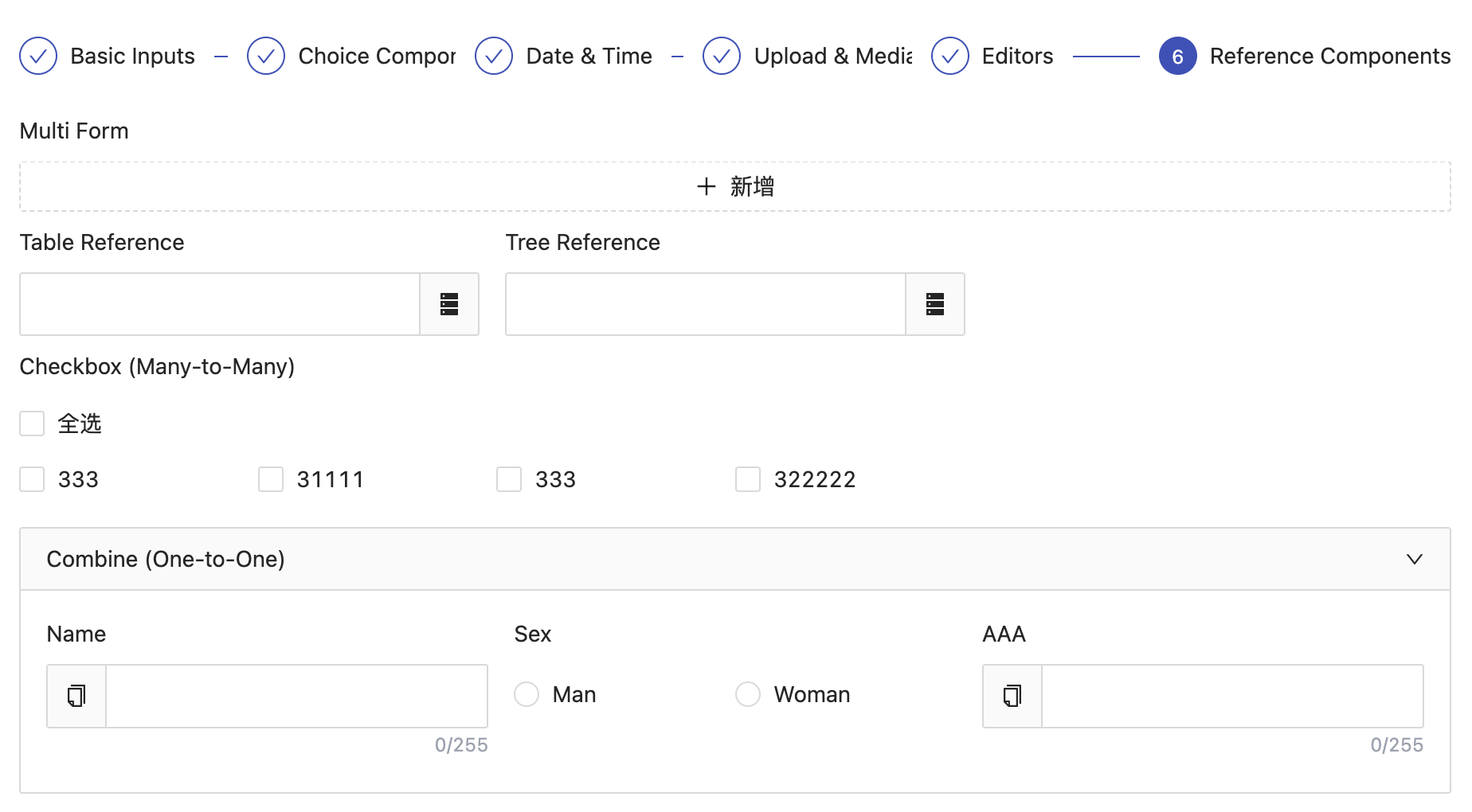

当表单字段较多时，一次性展示所有输入项会让用户无从下手。开启 @Layout 的 formSteps 后，表单将渲染为分步向导（Step Wizard）模式：字段按步骤分组，逐步填写，顶部步骤条实时展示进度。
开启方式
java
@Erupt(
name = "分步表单示例",
layout = @Layout(formSteps = true)
)分步规则
分步以 DIVIDE 分割线字段为边界：
- 每个
DIVIDE字段开启一个新步骤 DIVIDE的title作为该步骤的标题，desc作为该步骤的描述- 位于两个
DIVIDE之间的字段归属前一个步骤
完整示例
java
@Erupt(
name = "入职登记",
layout = @Layout(formSteps = true)
)
@Entity
@Table(name = "t_employee_entry")
public class EmployeeEntry extends BaseModel {
@Transient
@EruptField(edit = @Edit(title = "基本信息", desc = "填写个人基础资料", type = EditType.DIVIDE))
private String step1;
@EruptField(views = @View(title = "姓名"), edit = @Edit(title = "姓名", notNull = true))
private String name;
@EruptField(views = @View(title = "出生日期"), edit = @Edit(title = "出生日期"))
private LocalDate birthday;
@Transient
@EruptField(edit = @Edit(title = "联系方式", desc = "填写联系信息", type = EditType.DIVIDE))
private String step2;
@EruptField(views = @View(title = "电话"), edit = @Edit(title = "电话", notNull = true))
private String phone;
@EruptField(views = @View(title = "邮箱"), edit = @Edit(title = "邮箱"))
private String email;
@Transient
@EruptField(edit = @Edit(title = "岗位信息", desc = "填写入职岗位", type = EditType.DIVIDE))
private String step3;
@EruptField(views = @View(title = "部门"), edit = @Edit(title = "部门"))
private String dept;
@EruptField(views = @View(title = "职位"), edit = @Edit(title = "职位"))
private String post;
}上例将渲染为三个步骤：基本信息 → 联系方式 → 岗位信息。
TIP
DIVIDE字段仅作为分步边界，不参与数据存储，建议加@Transient注解避免生成数据库字段- 点击「下一步」时触发当前步骤的必填校验，校验不通过无法进入下一步
- 步骤条支持点击跳转：回退自由，向前跳转会依次校验途经的每个步骤
